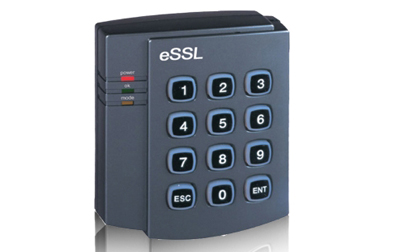

201 HE -Low Cost Proximity Access Control Reader

Product Description

201 HE is proximity based RFID Access Control Systems without communication,low price with good performance, designed especially for access control for high security zone, Server room, Datacenter etc.  Supports 3 opening way: card, pin, card+pin. With relay output can control the lock.

Technical Specification

• No.of Users : 1000
• Working Frequency 125KHZ/13.56MHZ
• Size: 87.5 X 109 X 33 mm
• Read Range: Upto 10 cm
• Reading Time (card): <=300ms
• Weight:150g
• Power : 12 V DC/Max 70mA
• Output Ports: External Lock Control, External Buzzer Control
• Support Exit Switch
• LED Indicator: 2 Color LED Indicators(Red and Green)
• Beeper : Yes
• Temperature : 0°C – 45°C
• Operating Humidity : 20%- 80%
