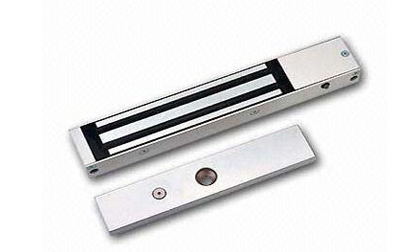

HC230GD- 600 Lbs LED Feedback Electromagnetic Lock

Product Description

essl HC2306F EM lock is capable of holding doors weighing up to 600lbs it also comes with indication device to monitor the status of the premises, whether it is opened or closed.

Technical Specification

• Magnet(L X W X H ): 250 X 41 X 26 mm
• Armature Plate(L X W X H ): 180 X 38 X 11 mm
• Mounting Plate(L X W X H ): 250 X 25.4 X 6.3 mm
• Current Consumption : 500mA/250mA
• Voltage: 12 V/24 V
• Voltage Tolerance : 115%
• Holding Force : 230 Kg
• Holding Capacity : 600 lbs
• Temperature : 10°C – 55°C
• LED MAgneticbondsensor
• Optional Accessories : L Bracket ,U Bracket ,ZL Bracket ,U Bracket for Glass Door
