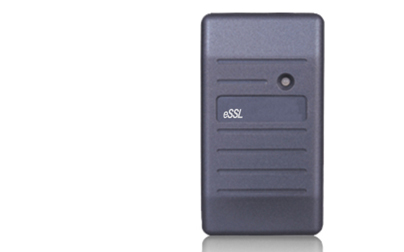

KR 100HE -Exit Proximity Card Reader

Product Description

KR 100HE (125KHz) is proximity based RFID Door Exit reader with Wiegand communication to connect to a master Access Control Device. Designed especially for access control for high security zones, Server room ,Datacenter etc.

Technical Specification

• Size: 116 X 75 X 17.3 mm
• Read Range: Upto 10 cm
• Reading Time (card): <= 300ms
• Weight:120g
• Power : DC 6-14/Max 70mA
• Input Port: 2ea (External LED Control, External Buzzer Control)
• Card Output: Weigand 26 Bit
• LED Indicator: 2 Color LED Indicators(Red and Green)
• Beeper : Yes
• Temperature : 0°C – 45°C
• Operating Humidity : 20%- 80%
